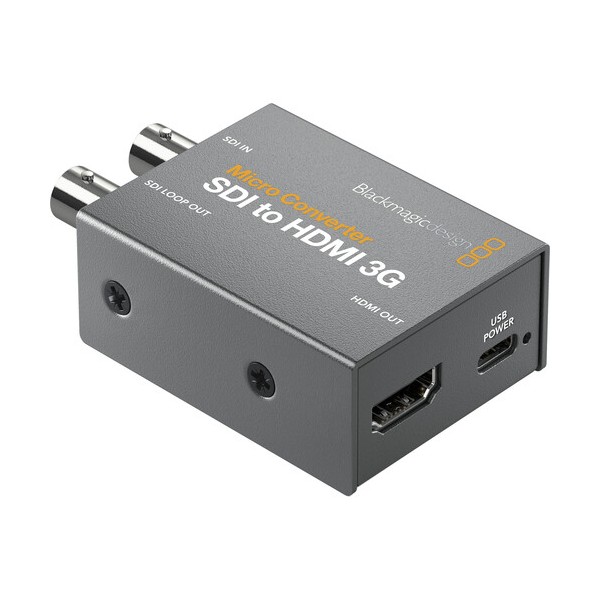

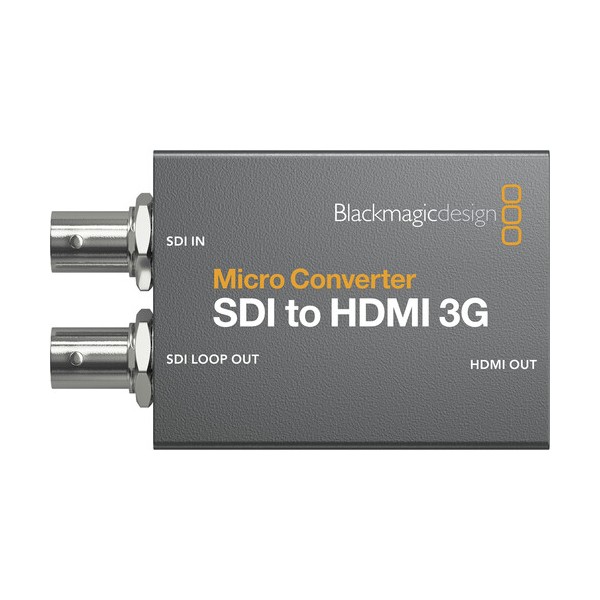

Blackmagic Design Micro Converter SDI to HDMI 3G (без AC-DC адаптер)

The world’s smallest 3G-SDI to HDMI broadcast quality converter!

Connections

• SDI Video Inputs
  1 x SD, HD or 3G-SDI.
• SDI Video Outputs
  1 x SDI loop out.
• HDMI Outputs
  HDMI Type A out.
• Multi Rate Support
  Auto detection of SD or HD.
• Updates, Configurations and Power
  USB Type‑C.

• SDI Video Standards
  525i59.94 NTSC, 625i50 PAL
• HD Video Standards
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  1080PsF25, 1080PsF29.97, 1080PsF30
  1080i50, 1080i59.94, 1080i60
  2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI,
  2Kp59.94 DCI, 2Kp60 DCI
  2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• SDI Compliance
  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
• SDI Video Rates
  SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition.
• SDI Color Precision
  4:2:2
• SDI Color Space
  YUV
• SDI Auto Switching
  Automatically detects SD, HD and level A or B for 3G‑SDI.
• HDMI Video Standards
  525i29.97 NTSC, 625i25 PAL
  720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  1080i50, 1080i59.94, 1080i60
• HDMI Color Precision
  4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
• HDMI Color Space
  YUV

Settings Control
Via MacOS™ and Windows™ software utility connected by USB.

Power Consumption
1.6 W
Operational Voltage Range
4.4V to 5.25V DC

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing

What’s Included

Micro Converter SDI to HDMI 3G

Warranty

3 Year Limited Manufacturer’s Warranty.
